Chemical processing requires high quality air moving fans / blowers to move the toxic fumes and gases to air scrubbing ventialtor systems. CBC Blower’s pre-engineered and custom heavy duty fans  and blowers meet the high demands of the chemical industry. Our fans are used in a variety of air ventialting systems that include dust control, fume exhaust, induced draft, forced draft, and air pressure control.

Products - Blowers and Fan

Heavy Duty

Power generation fans Large induce draft fans

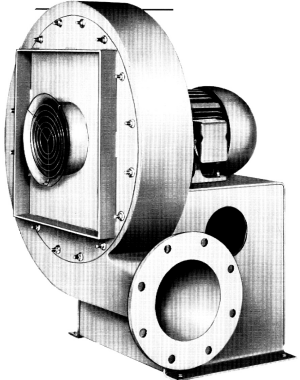

Industrial baghouse fans Combustion blowers

Custom industrial fans blowers Big industrial blower fan
Incineration fan blower Industrial force draft fan

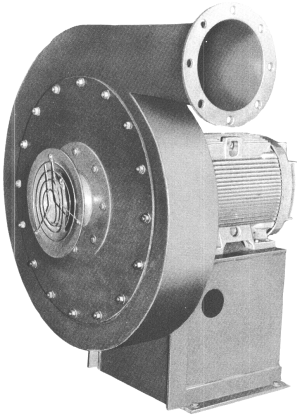

High pressure blower fan Manufacturer of I.D. blowers, F.D. blowers, force draft fans, force draft blowers, blow off ventilators / fans, PVC FRP SST ventilators, squirrel cage blower fans, high pressure centrifugal ventilators, Chicago blowers, aluminum fans, stainless steel ventilators, hot air blowers, heating fans, high temperature oven ventilators, high pressure air blowers, squirrel cage blower wheels, Peerless Dayton ventilators, Sheldons blowers, New York fans NYB, TCF, Delhi fans blowers.

CB VENTILATORS








Most regenerative blowers are single stage: the air travels around the blower housing once and is discharged. Two-stage regenerative blowers can provide almost twice the pressure or vacuum of single-stage units. In a single-impeller, two-stage unit, air makes one revolution around the front side of the impeller. Then, instead of being discharged, the air is channeled to the backside of the impeller through internal porting. Air then makes another revolution around the backside of the impeller before it is discharged. Other two-stage configurations are also available, including designs that use two separate impellers in one housing or two impellers and housings.

Regenerative blowers are ideal for moving large volumes of air at low pressures or vacuums. Unlike positive displacement compressors and vacuum pumps, they pressurize air through a nonpositive displacement method. Typical regenerative blower applications include sewage aeration, vacuum lifting, vacuum packaging, pneumatic conveying, concrete aeration, pond aeration, vacuum tables, drying, dust/smoke removal, air sparging, and chip removal.

Of all air handling equipment, regenerative blowers are probably the least understood. However, when system parameters fall within their range, they can be among the most cost-effective methods for moving air and producing pressure or vacuum.

Regenerative blowers are sometimes called side channel blowers or ring compressors, terms that refer to their physical construction. They can be direct or belt driven. In direct drives, the impeller is mounted on an electric motor shaft. The number, size, and angle of the blades on the impeller determine pneumatic performance as well as the relationship between the impeller and housing. Some blowers have rather flat performance curves while others have steep ones.

The impeller spins within a housing with an inboard and outboard channel. It is from this configuration that the name side channel blower is drawn. As the impeller blades pass the inlet port, they draw air in. The impeller rotation pushes air outward and forward into the channels. The air then returns to the base of the blade. As the impeller spins, the process repeats. This regeneration gives the blower its pressure/vacuum capabilities.

Among the major benefits of a regenerative blower is its lack of maintenance and monitoring requirements. The impeller is the only moving part and is wear free and does not come in contact with the housing channels. Self-lubricated bearings are the only parts that wear.

Regenerative blowers are oilless and have no complicated intake / exhaust valving. Most can be mounted in any plane and, with dynamically balanced impellers, generate little vibration. Because they are nonpositive displacement compressor/vacuum pumps, they discharge air that is clean and pulsation free, which are important considerations for today's plant instruments and controls.

The majority of blower failures are caused by improper installation or operation. Regenerative blowers have close internal clearances between the impeller and housing. It is important to prevent foreign material from entering that space. Ingested debris wedging between the impeller and housing can cause the blower to lock up and lead to a catastrophic failure. A blower should always be equipped with an intake filter. A 10-micron size is usually adequate. Filters must be kept clean. A blocked filter will starve flow.

Over-pressurization can also cause deadheading (zero airflow through the blower) and catastrophic failure. Some blowers tolerate deadheading, but other models (typically those above 1 hp) must have air passing through them for cooling. If air does not pass through the blower, heat builds up in the impeller causing it to expand at a faster rate than the housing. Eventually the impeller locks up with the housing and the blower fails. A relief valve prevents overpressurization and deadheading conditions and allows air to pass through the blower.


Stock of tubeaxial & vaneaxial inline duct fans, blower and fan repair / balancing, replacement centrifugal and axial fan blades, axial duct fans, aluminum pressure blowers, FRP ventilators, dust collectors blowers fans, dust collection fan ventilators, high temperature oven circulation fans, explosion proof ventilatoprs, spark reistant fans and blowers, induce & force draft fans, fan blower impellers.
Industrial blowers operating in corrosive environments are usually made of polypropylene because it provides greater structural integrity and corrosion resistance, and will never de-laminate. Typical recommendations in the construction of industrial blowers are - fiberglass for temperatures above 220 degrees, and metal if pressure is above 10 w.g. (water gauge). Piloted Units are supplied with a solenoid-operated Automatic Pilot Valve and a small pressure regulator – around 20,000 BTU – as well as an ignition transformer for the pilot spark igniter. Engineers of large building air circulation fans, duct ventilators, inline axial fans, centrifugal blowers with various wheel designs.
